1 The type of 4S BMS

Before We once talked the BMS type as below:

The BMS Type and Application part 1

am not sure if you are clear .  but recently many guys come to ask the 4S BMS .so i  i will mention the details of 4S  BMS to explain it again

4S BMS has two type ,

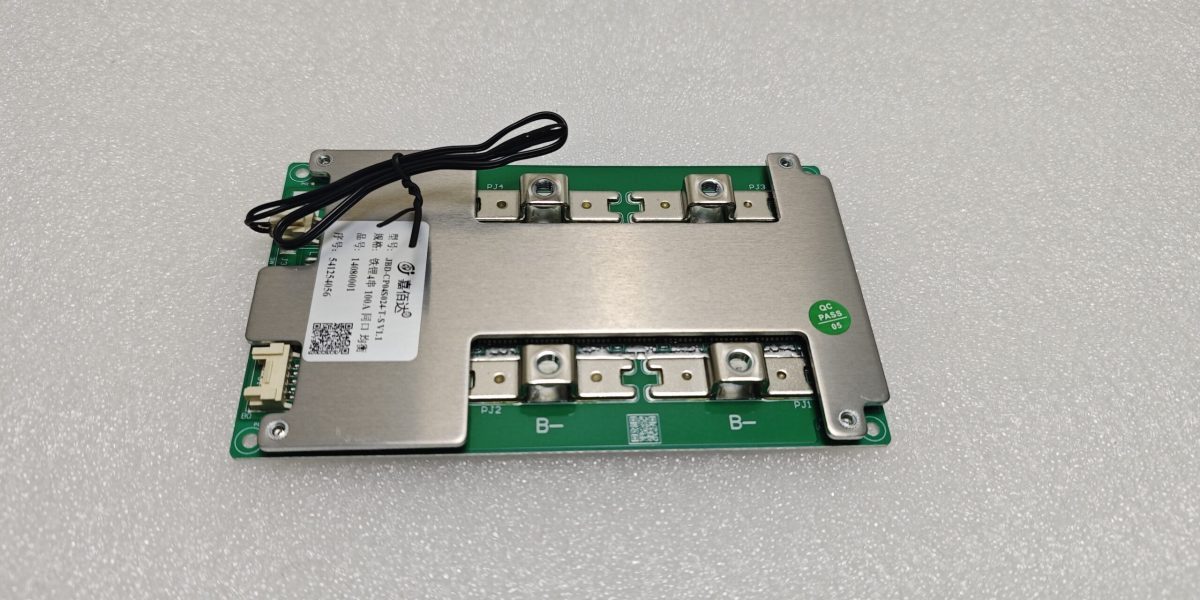

one is the hardware BMS as below  The famous brand is JIABAIDA

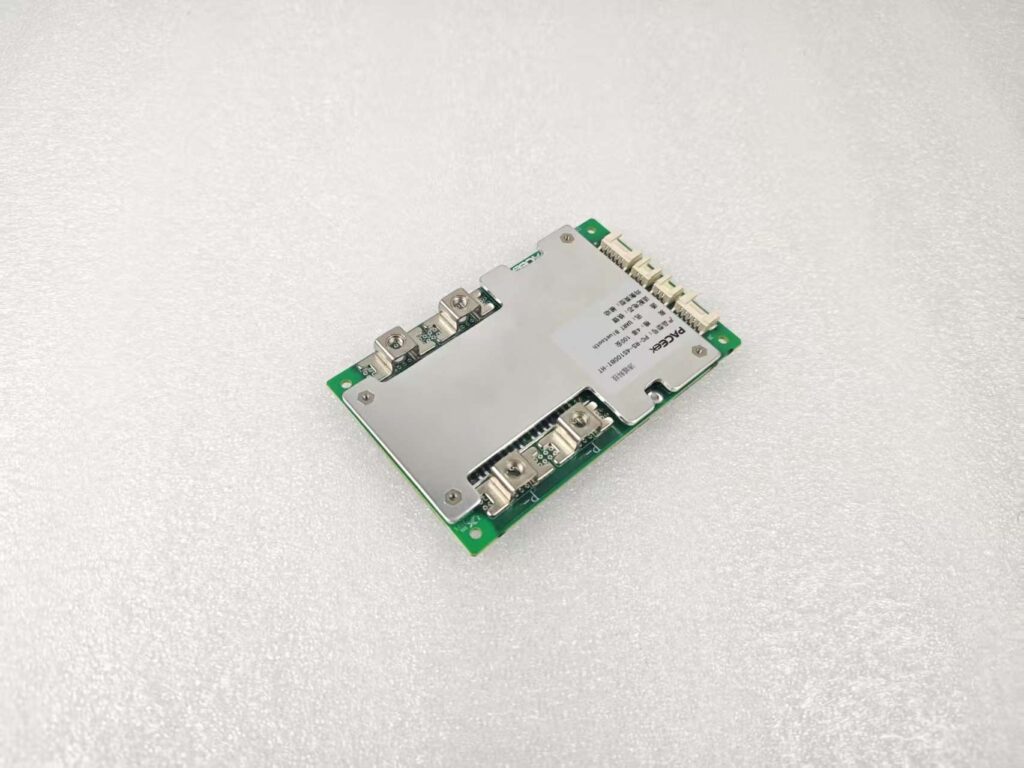

Another one is with the  Bluetooth . we call it smart BMS as below:

now it is seldom to see the 4S BMS with wifi  if yes. then it is the additionally  Independent Functional Module. it is not integrated one with the BMS . It is very import for us to understand it

2  the capacity of 4S BMS

  all the 4S BMS  will have different Capacity.they will be  like 4S  100A 150A  200A  250A n Hardware and Smart BMS

you can choose the the different type .

here ,pls note one very important thing. you need to choose the BMS according to your loading of the Electrics. .It is Ampere . not the Ah .  not according to the capacity like Ah to choose .

here is one article to check as below  :

What the relationship of Ah. Ampere and Wh

many people is easy to mix it . pls note it

3 The balancer  to work with  4S BMS

  This is one very important thing . If customer want to use the active balance to work with the 4S BMS

the solution is as below

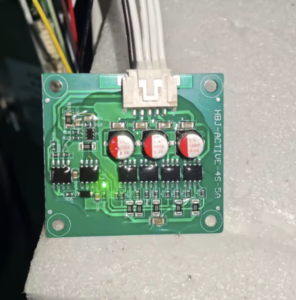

1)Firstly  add the independent module as below :

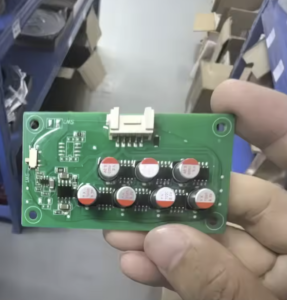

according to the  different  capacity of the cells . you can choose different

2) Secondly integrated active Balance BMS

as below :

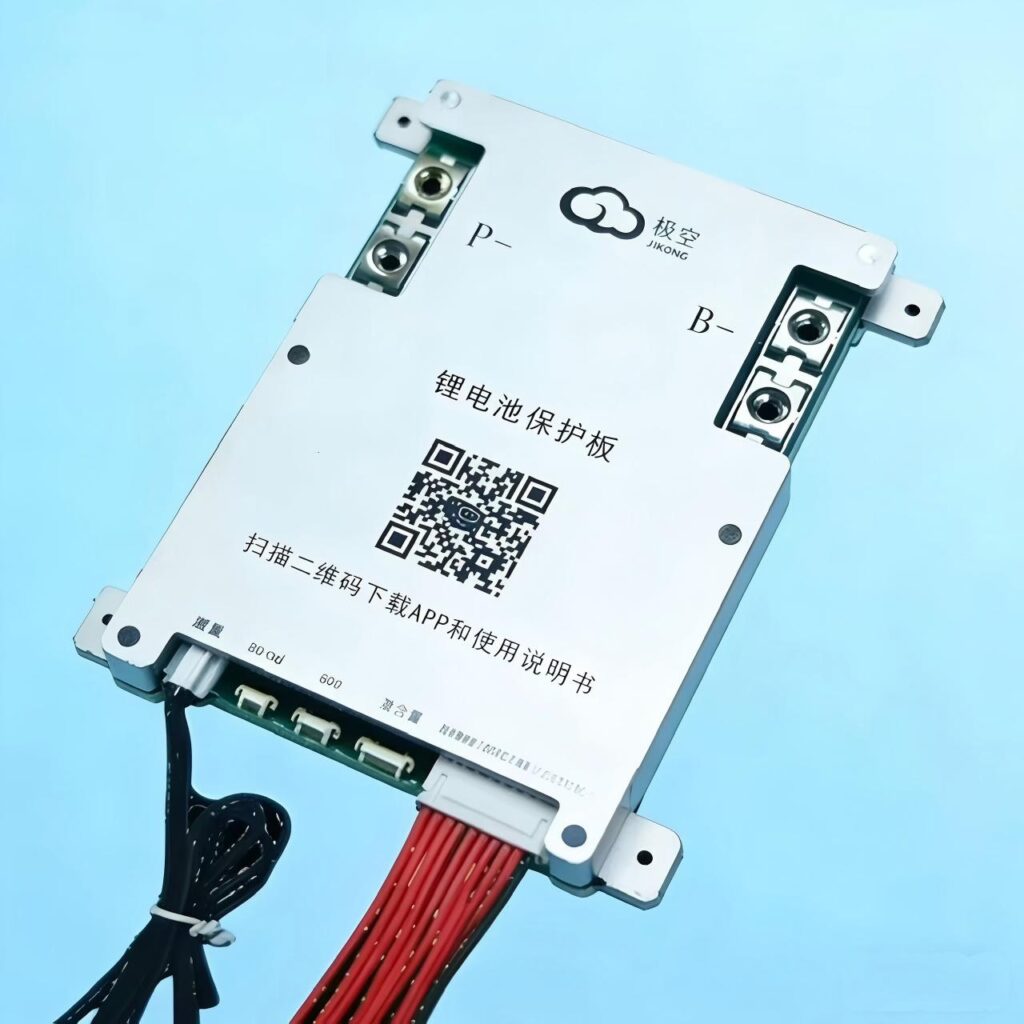

It is the JK 8S 100A or 200A .  it has equip the active Balance 1A  2A or 0.6A .  the advantage is convenient .but it is expensive . because they don;t design the separate 4S BMS   The Min series is 8S . but you can reduce the 8S into 4S . Just the cost is high

all of above is Based on my experience and basic information,  if you have more question , lets study together . if you are from Nigeria , you can get the full solution from us
