3.2V Lifepo4 Battery 150Ah

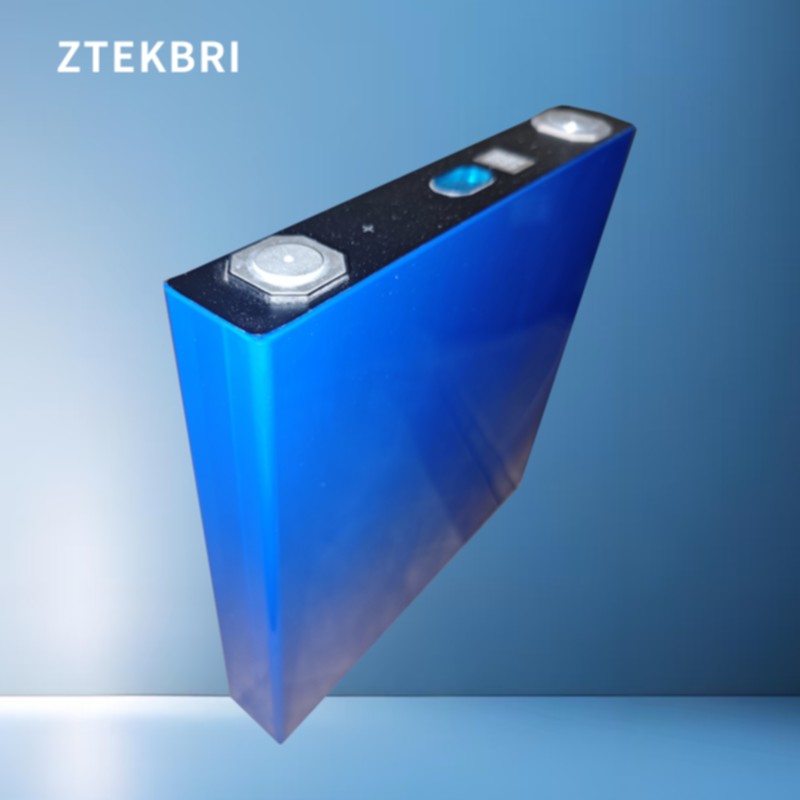

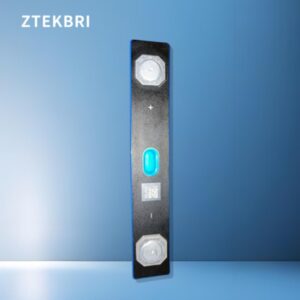

3.2V Lifepo4 Battery 150Ah
Important Parameter Description
3,000 ultra-long cycle life, safe and stable, especially with strong thermal stability, highly resistant to combustion and explosion. Lightweight, compact, easy to carry and install. Can be charged and discharged on the go, simple maintenance, high usable capacity, low self-discharge for long-term storage, excellent low-temperature discharge performance, suitable for cold environments
Product details
Quality Control Process and Equipment
Process flow
1 Raw Material Inspection (Battery System Testing and Sampling Equipment)
Battery capacity, voltage, internal resistance, appearance, dimensions of the casing, thickness, fit of accessories, manual and automated testing
2 Inspection in production process
Battery pairing and correct installation of battery tabs in the module are being checked by BMS AfE.
3 Finished Product Testing (Aging Test)
Our Certification
Packing and Shippment
EVA Protection + UN carton
Battery Type: Lithium Iron Phosphate Battery
Product Name:3.2V Lifepo4 150Ah Battery
Shell Material:Aluminium
Nominal Capacity:150Ah
Nominal voltage:3.2V
Max Charge Voltage:3.65V
Discharge termination voltage: 2.5V
Internal resistance:≤0.3mΩ
Size(L*W*H):207*200*33.25 mm(+/-10mm)
Battery weight:About 2KG
Charging temperature: -5~60°C
Discharge temperature: -30~60°C
Cycle life:8000 cycles
Screw size:M6 Suit for System:12V 24V 48V 72V 96V 108V Solar Energy Storage System
Typical application
- Portable energy storage/outdoor: camping power supply, outdoor work, emergency power supply, CPAP power supply
- RV/Marine:12V refrigerator, lighting, water pump, navigation, towing motor
- Small scale photovoltaic energy storage:household/off grid micro energy storage, 3-5 kW system, backup UPS
- Industrial/AGV: electric forklifts, AGV carts, stacker trucks, cold storage handling vehicles
- Communication/Base Station: 48V 50Ah rack mounted, backup power supply, maintenance free
- Low speed electric vehicles: electric tricycles, elderly commuting vehicles, sightseeing vehicles
- Medical/Instrument: Portable medical equipment, precision instrument backup power supply
1 What does 150Ah mean?
Representing battery capacity, in simple terms, it refers to the amount of stored electricity. The larger the number, the more stored electricity and the longer it can be used.
2 How many kWh of electricity are12V/24V/48V 150Ah?
12V50Ah: 1.92 kWh
24V50Ah: 3.84kWh
48V50Ah: 7.68kWh
3 How long can it last to be full?
It will depend on the loading of Electricity For Example Work With a 100W device, The capacity is 1920w ,It can last 19.2hours
4 Can it be connected in series or parallel?
It can be used for series boosting the voltage and parallel expansion the Capacity, and must be of the same model, capacity, and voltage. It is recommended not to exceed 4 series and 4 parallel connections.
5 Do I have to use BMS?
Have to work with BMS.BMS is responsible for overcharge, overdischarge, overcurrent, short circuit, and high temperature protection, if dont equip BMS, It will be very dangerous or easy to be damaged
